Cat6A Black Ethernet Cable Patch Cord

Cat 6a Ethernet Cable was developed to achieve a maximum distance of 90 meters for full 10-Gigabit network speeds. This robust specification will afford you the extra headroom across your network that Cat6 cannot. The 500 MHz performance is double that of Category 6 and five times the bandwidth capacity of Cat 5e Ethernet Cable. The extra performance is ideal for Power over Ethernet (PoE) and Voice Over Internet Protocol (VoIP) applications where data loss is audibly and visually seen and heard.

The latest draft declares a new measurement for Power-Sum Alien Crosstalk to ensure neighboring pairs do not cause disturbance to other cables. The cable center isolator maintains strict pair separation, optimizing NEXT performance. Our Cat6a patch cables are a complete end-to-end solution and are tested for compliance with all EIA/TIA-568-C Category 6 specifications.

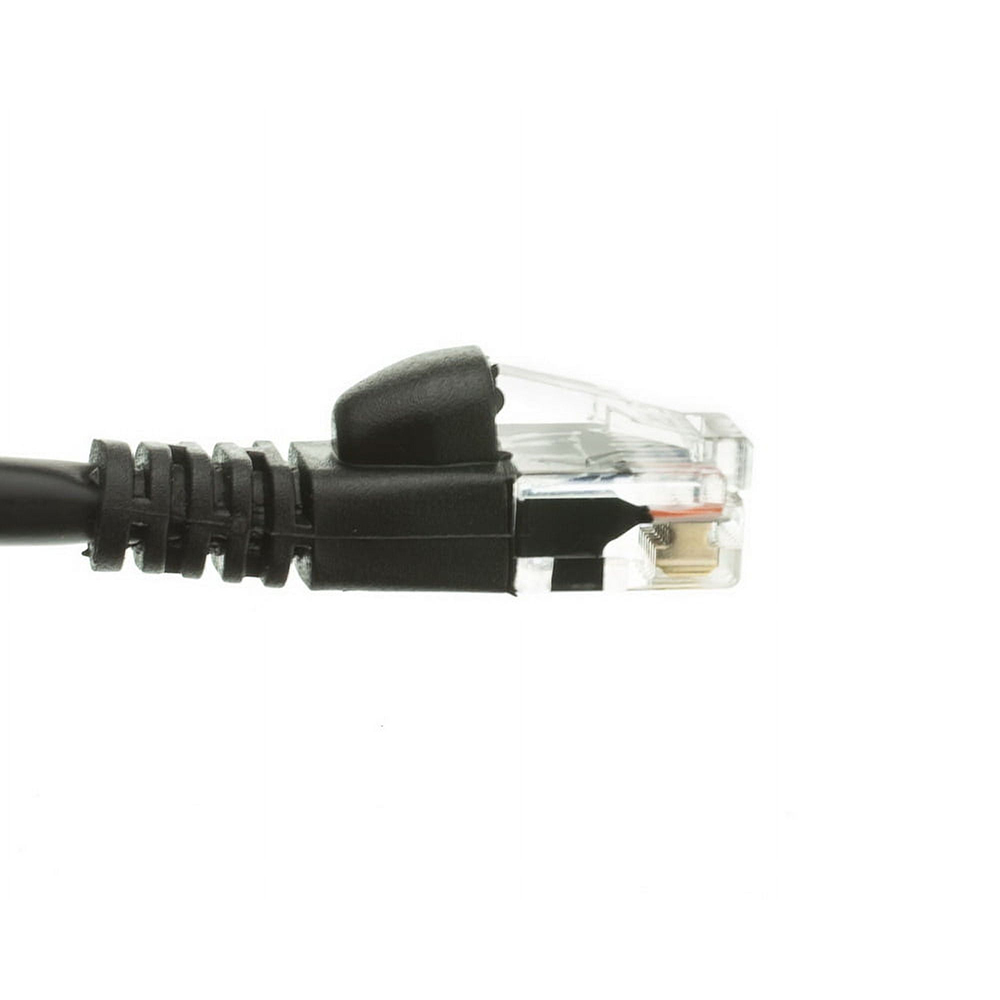

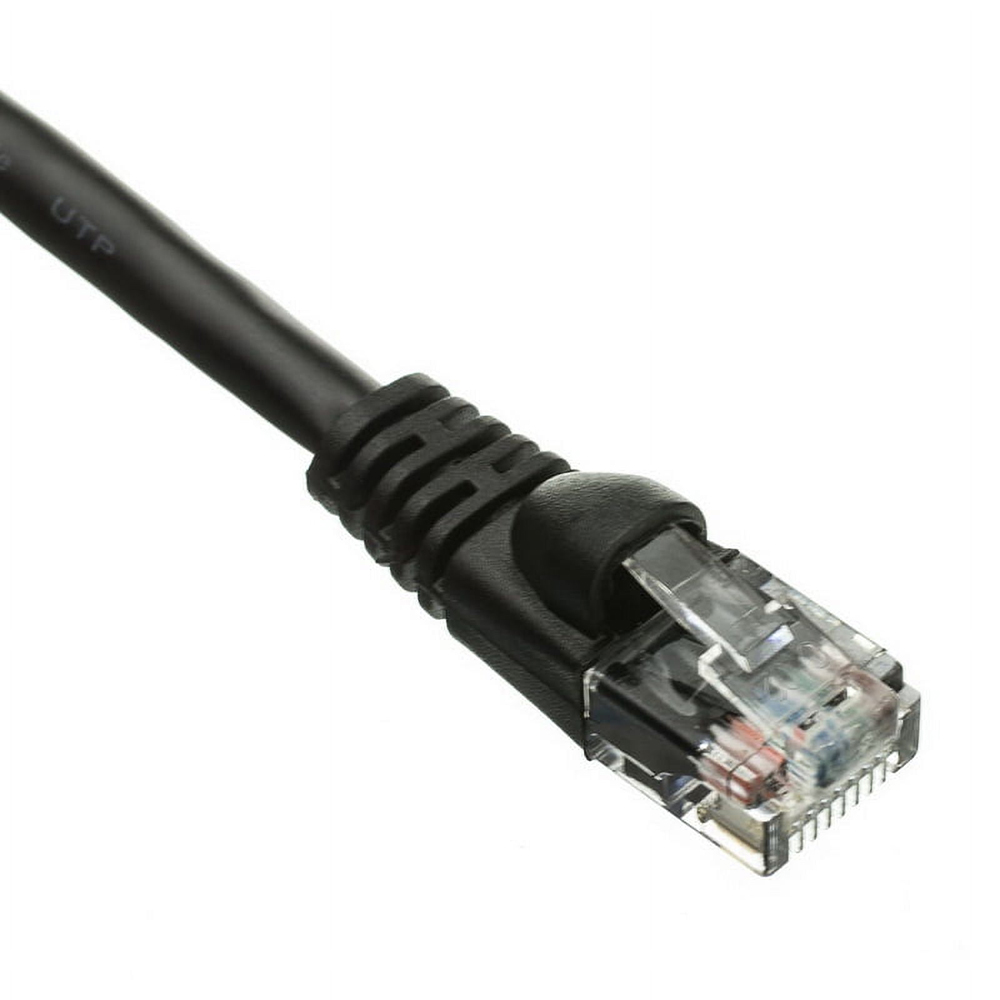

LAN Cable: This particular cable is a black UTP (Unshielded Twisted Pair) patch cable with molded boots (snagless installation) and extra protection for the RJ45 connector and clip. Cat6a cable includes a spline and ribbing to help ensure separation between the pairs, which limits crosstalk. The connectors are wired to the T568B standard. The individual conductors are 24 AWG (American Wire Gauge) stranded pure copper. Cat6a patch cables are stranded to improve flexibility. Pure copper conductors provide the best signal possible.
